Company House API Document API

AbhijeetKate
Level 3
Hi, Can anyone please post  code of action 'HTTP Request File' under Utility-HTTP. we are using BP 6.10.3 version and having old version of object which doesn't have said action, as per policy can't download VBO from DX directly, however tried getting code for action but its not working properly. also please help me with which all dll to be added in Code option tab in Information stage of object., to be precise getting error on line below.
resultHeadersJson = JsonConvert.SerializeObject(ToDictionary(response)) ToDictionary is not defined.
cant post screenshot here due to organisation policies.

Thanks in advance,
Abhijeet.

------------------------------
Abhijeet Kate
Associate Consultant
Capgemini india pvt.ltd
Asia/Kolkata
------------------------------
1 BEST ANSWER

Helpful Answers

Hi @Abhijeet Kate,

Thanks for reaching out to the community. Please find the below details ​which can help you:

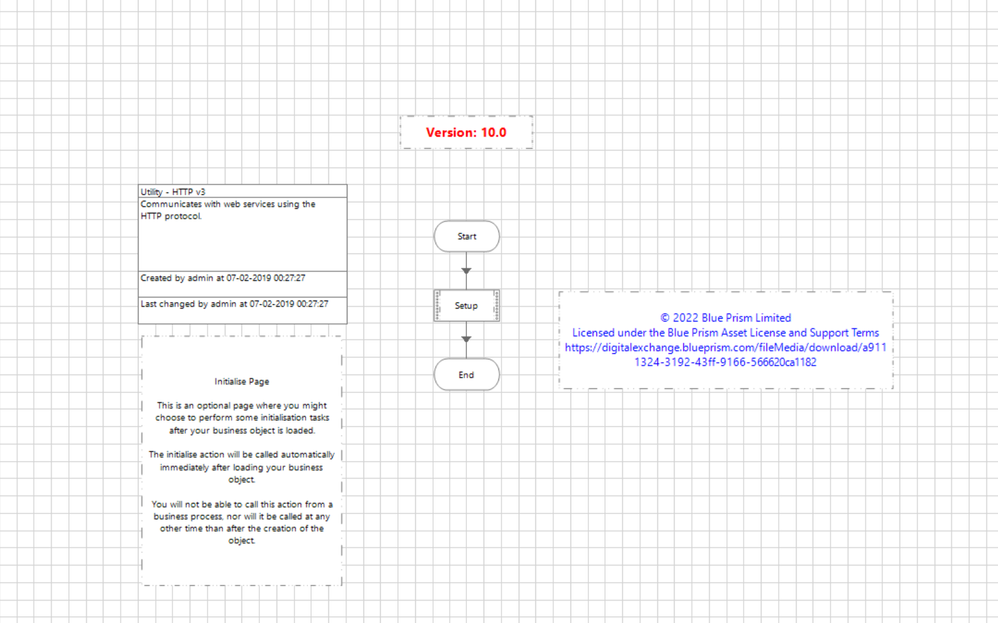

Initialise Page:

Global Code Options Within Initialise:

Private m_Certificates As New Dictionary(Of String, X509Certificate2)

Private Function GetCertificate(ByVal subject As String) As X509Certificate2
Dim store As New X509Store(StoreName.My, StoreLocation.LocalMachine)
Try
store.Open(OpenFlags.ReadOnly)
Dim certs As X509Certificate2Collection = store.Certificates.Find(X509FindType.FindBySubjectName, subject, True)
For Each cert As X509Certificate2 In certs
Return cert
Next
Finally
store.Close()
End Try
Return Nothing
End Function

Function ToDictionary(webResponse As HttpWebResponse ) As Dictionary(Of String, String)

Dim dict = New Dictionary(Of String, String)()

For index As Integer = 0 To webResponse.Headers.Count - 1

If webResponse.Headers.Keys.Count -1 >= index Then

dict.Add(webResponse.Headers.Keys(index), webResponse.Headers(index) )

End if

Next

Return dict

End Function

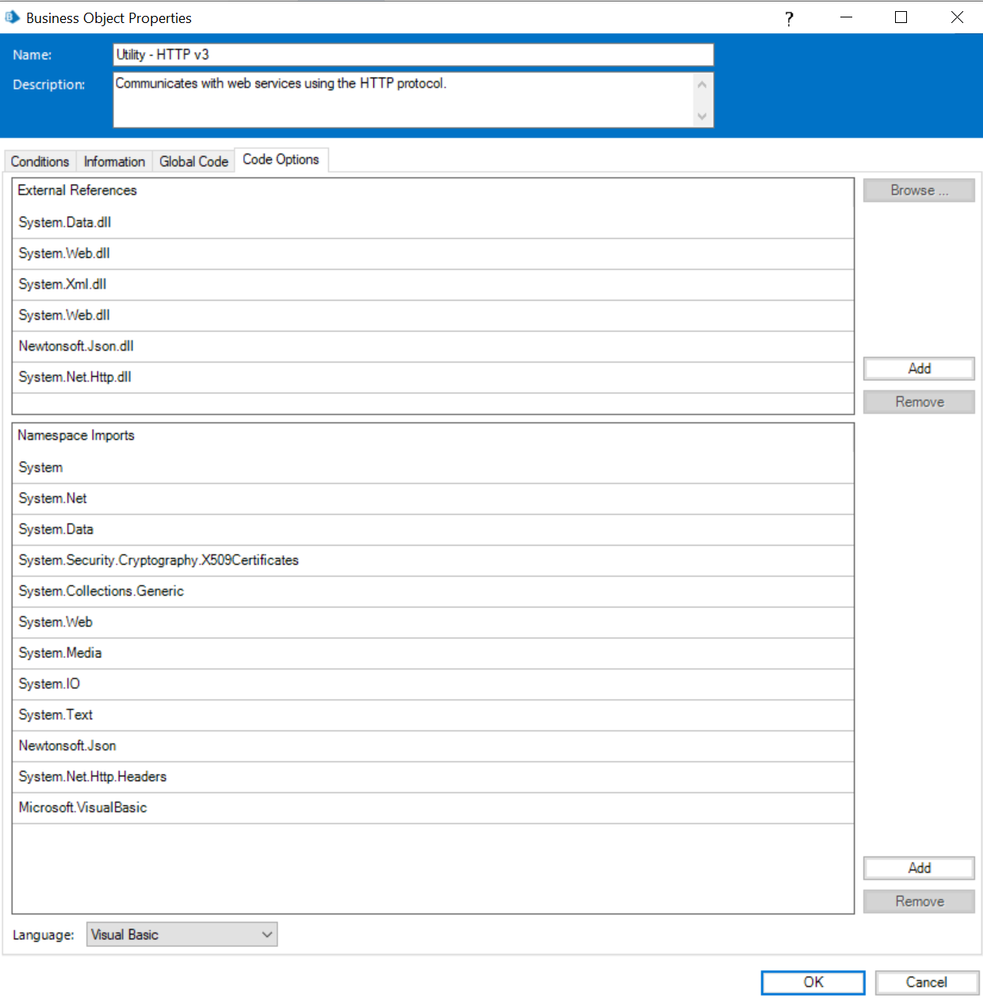

Code Options Within Initialise:

Setup Code Stage Within Initialise:

System.Net.ServicePointManager.Expect100Continue = False

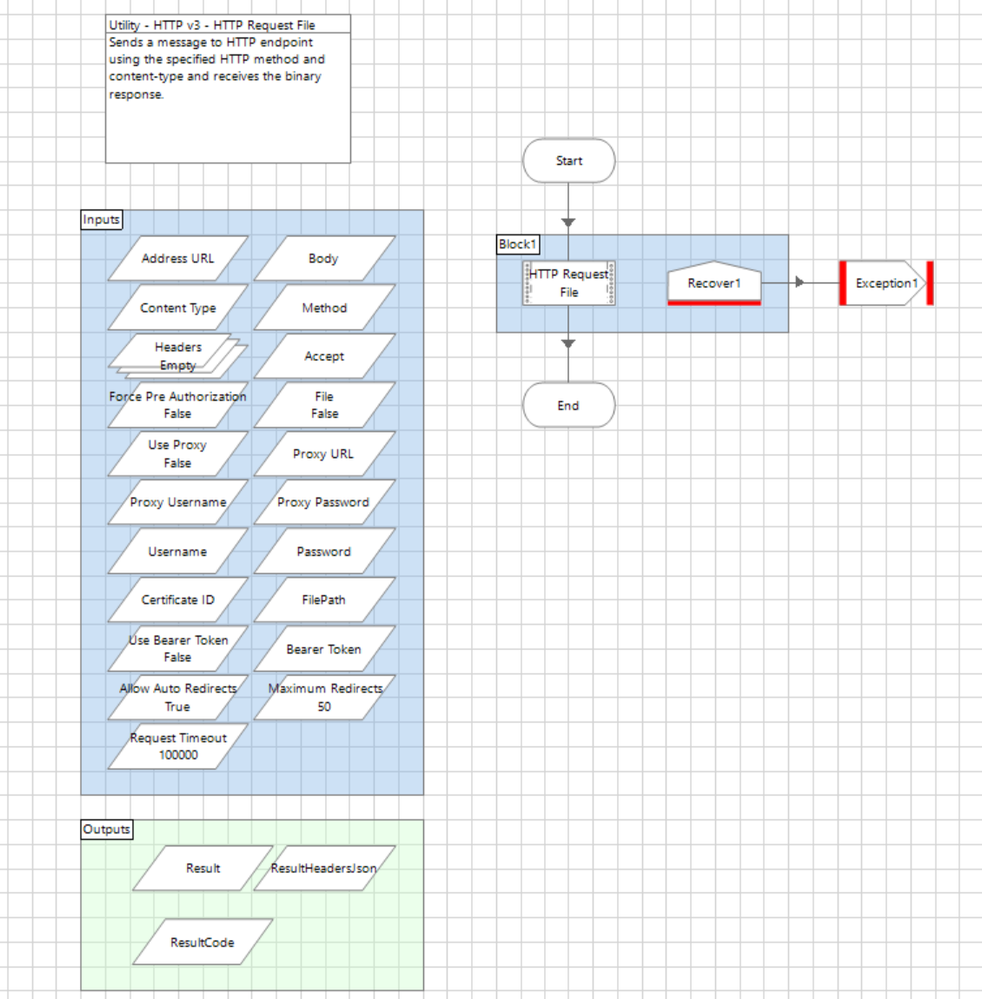

HTTP Request File Action:

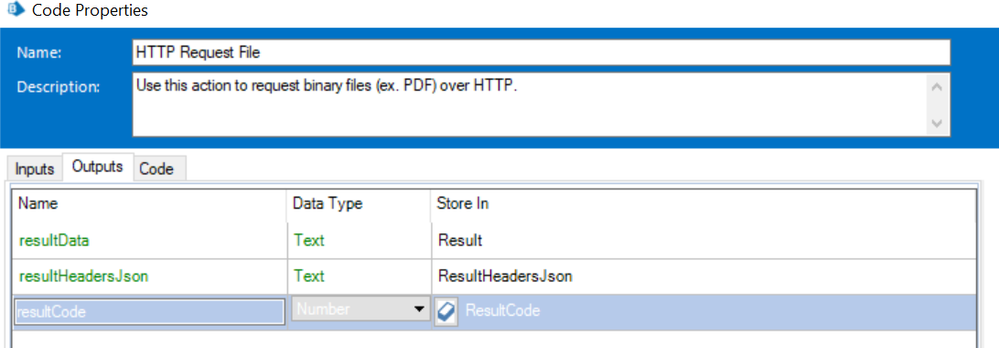

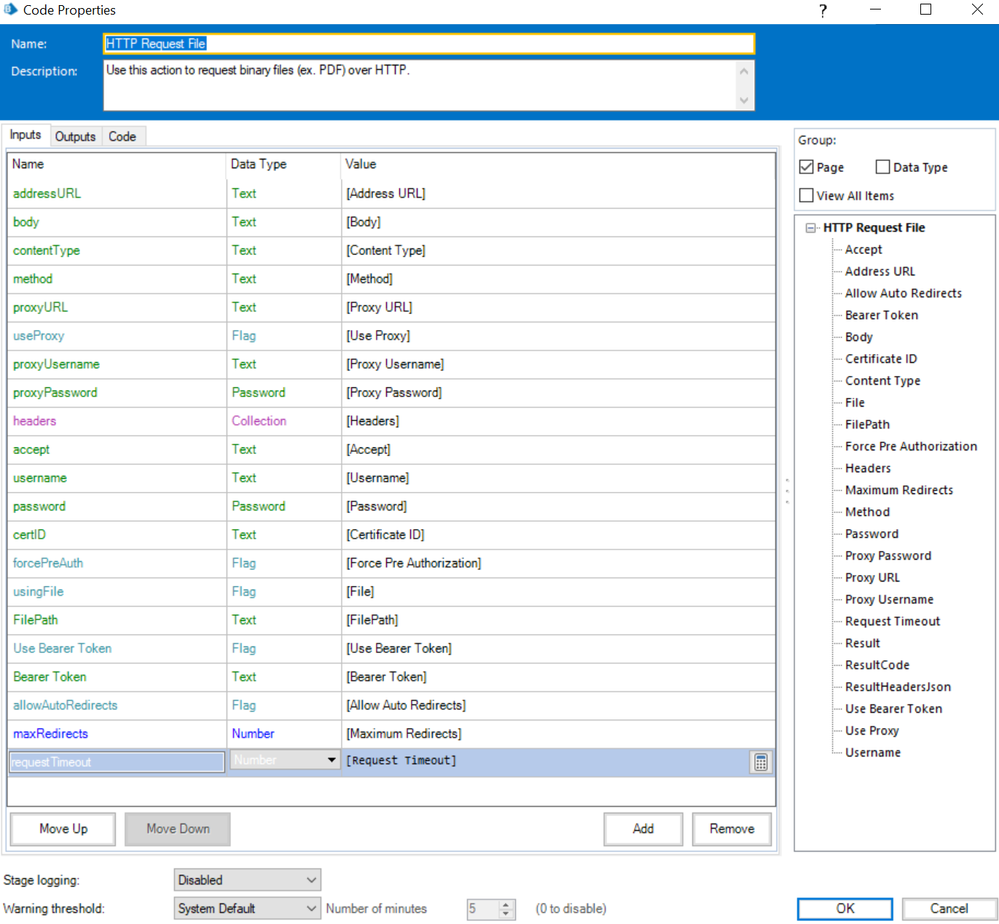

Code Stage Within HTTP Request File Action:


Try
	Dim request As WebRequest = WebRequest.Create(addressURL)

	If forcePreAuth Then
	   ' Sometimes a web server will require the authorisation header in the initial request
	   ' In which case we have to add the basic authorization header manually.
	   Dim bytes() As Byte = System.Text.Encoding.UTF8.GetBytes(String.Format("{0}:{1}",username,password))
	   Dim base64 As String = Convert.ToBase64String(bytes)
	   request.Headers.Add("Authorization", "Basic " & base64)
	Else
	  If Not String.IsNullOrEmpty(username) AndAlso Not String.IsNullOrEmpty(password) Then
		request.Credentials = New NetworkCredential(username,password)
	  End If
	End If

    ' Be aware that if you use forcePreAuth as well as UseBearerToken then forcePreAuth gets priority.
	If Use_Bearer_Token And Not forcePreAuth Then
		request.Headers.Add("Authorization","Bearer " & Bearer_Token)
	End If

	If useProxy Then
		Dim proxyURI As New Uri(proxyURL)
		Dim proxy As New WebProxy(proxyURI, True)
		Dim proxyCred As New NetworkCredential(proxyUsername, proxyPassword)
		Dim credCache As New CredentialCache()
		credCache.Add(proxyURI, "Basic", proxyCred)
		proxy.UseDefaultCredentials = False
		proxy.Credentials = credCache
		request.Proxy = proxy
	End If

	' Set the request timeout. Need to see if the user specified 'Infinite' (a value of -1 according to
	' https://docs.microsoft.com/en-us/dotnet/api/system.net.webrequest.timeout?view=net-5.0)
	If ((requestTimeout = -1) Or (requestTimeout > 0)) Then
		request.Timeout = requestTimeout
	Else
		request.Timeout = 100000 ' Default
	End If

	request.Method = method
	request.ContentType = contentType

	Dim httpRequest As HttpWebRequest = TryCast(request, HttpWebRequest)
	If httpRequest IsNot Nothing Then
	  If Not String.IsNullOrEmpty(accept) Then
		httpRequest.Accept = accept
	  End If
	  If Not String.IsNullOrEmpty(certID) Then
		httpRequest.ClientCertificates.Add(m_Certificates(certID))
	  End If

	  ' Set the AllowAutoRedirect attribute.
	  httpRequest.AllowAutoRedirect = allowAutoRedirects
	  httpRequest.MaximumAutomaticRedirections = maxRedirects

	End If

	For Each r As DataRow In headers.Rows
		For Each c As DataColumn In headers.Columns
			Dim columnName As String = c.ColumnName
			Dim val As String = r(columnName).ToString

			' This check ensures that we only include a single Authorization header in the request header collection.
			If Not columnName.ToUpper().Equals("AUTHORIZATION") Then
				request.Headers.Add(columnName,val)
			Else
				If Not forcePreAuth And Not Use_Bearer_Token Then
					request.Headers.Add(columnName,val)
				End If
			End If
		Next
		Exit For ' Only one row is allowed
	Next

	' Normal stream writer, we aren't encoding a file etc.
	If Not usingFile Then

		If Not String.IsNullOrEmpty(body) Then
		  Dim requestStream As IO.Stream = request.GetRequestStream()
		  Using sw As New IO.StreamWriter(requestStream, New Text.UTF8Encoding(False))
			sw.Write(body)
		  End Using
		End If

	Else If usingFile Then
		' Prep the request body
		Dim byteArray = File.ReadAllBytes( body )
		Dim requestStream As IO.Stream = request.GetRequestStream()
		requestStream.Write(byteArray,0, byteArray.Length)
	End If

	Using response As WebResponse = request.GetResponse()
		' Need to cast the WebResponse to an HttpWebResponse so we can get the StatusCode and check to see if compression was used.
		Dim httpResponse As HttpWebResponse = CType(response, HttpWebResponse)
		resultCode = Convert.ToInt32(httpResponse.StatusCode)

		resultHeadersJson = JsonConvert.SerializeObject(ToDictionary(response))
		Dim responseStream As IO.Stream = response.GetResponseStream()
        Dim lWriter As New IO.FileStream(FilePath, IO.FileMode.Create)

		' Was compression used on the data?
		If (httpResponse.ContentEncoding.ToLower().Contains("gzip"))
			responseStream = New System.IO.Compression.GZipStream(responseStream, System.IO.Compression.CompressionMode.Decompress)
		ElseIf (httpResponse.ContentEncoding.ToLower().Contains("deflate"))
			responseStream = New System.IO.Compression.DeflateStream(responseStream, System.IO.Compression.CompressionMode.Decompress)
		End If

		Dim lLength As Long
		Dim lBytes(256) As Byte

		Do
			lLength = responseStream.Read(lBytes, 0, lBytes.Length)
			lWriter.Write(lBytes, 0, lLength)
		Loop While lLength > 0

		lWriter.Close()
		responseStream.Close()

		resultData = "done"

	End Using

Catch e As WebException

	If Not e.Response Is Nothing Then

		' Cast the WebResponse to an HttpWebResponse so we can get the StatusCode
		Dim httpResponse As HttpWebResponse = CType(e.Response, HttpWebResponse)
		resultCode = Convert.ToInt32(httpResponse.StatusCode)

		' Get the HTTP response message.
		resultData = e.Message

	Else
		resultData = "Exception: " & e.Message
		If (e.InnerException.Message.Length > 0) Then
			resultData = resultData & vbCRLF & "Inner Exception: " & e.InnerException.Message
		End If
	End If

End Try





------------------------------
----------------------------------
Hope it helps you out and if my solution resolves your query, then please mark it as the 'Best Answer' so that the others members in the community having similar problem statement can track the answer easily in future

Regards,
Devneet Mohanty
Intelligent Process Automation Consultant | Sr. Consultant - Automation Developer,
WonderBotz India Pvt. Ltd.
Blue Prism Community MVP | Blue Prism 7x Certified Professional
Website: https://devneet.github.io/
Email: devneetmohanty07@gmail.com

----------------------------------
------------------------------
---------------------------------------------------------------------------------------------------------------------------------------
Hope this helps you out and if so, please mark the current thread as the 'Answer', so others can refer to the same for reference in future.
Regards,
Devneet Mohanty,
SS&C Blueprism Community MVP 2024,
Automation Architect,
Wonderbotz India Pvt. Ltd.

View answer in original post
