Sam Lima
------------------------------
1 BEST ANSWER
Helpful Answers
Hi @SamLima,
Ideally, without color tolerance as well you should be able to spy those elements. You can check my properties once and try to replicate the same and verify at your end.

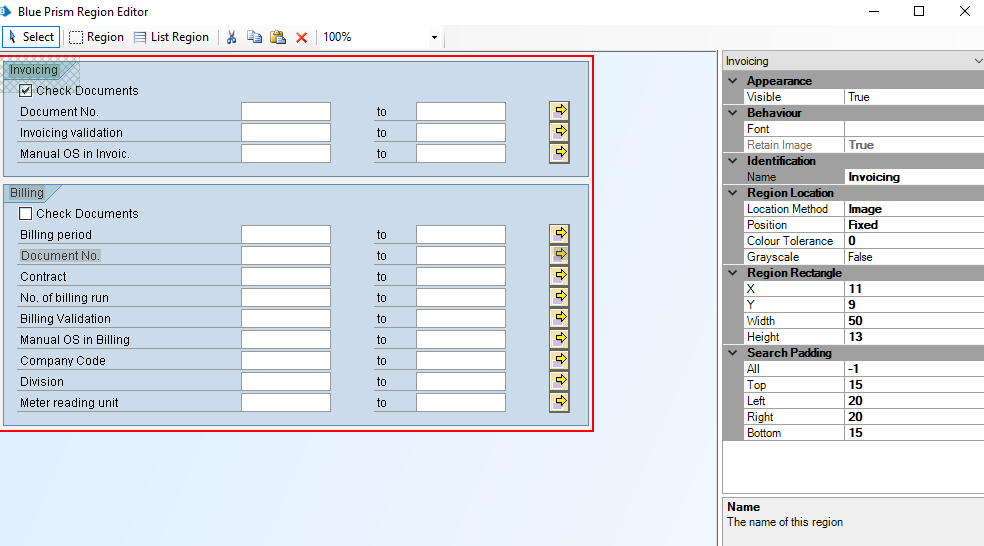

Invoicing Field:
It is set as fixed

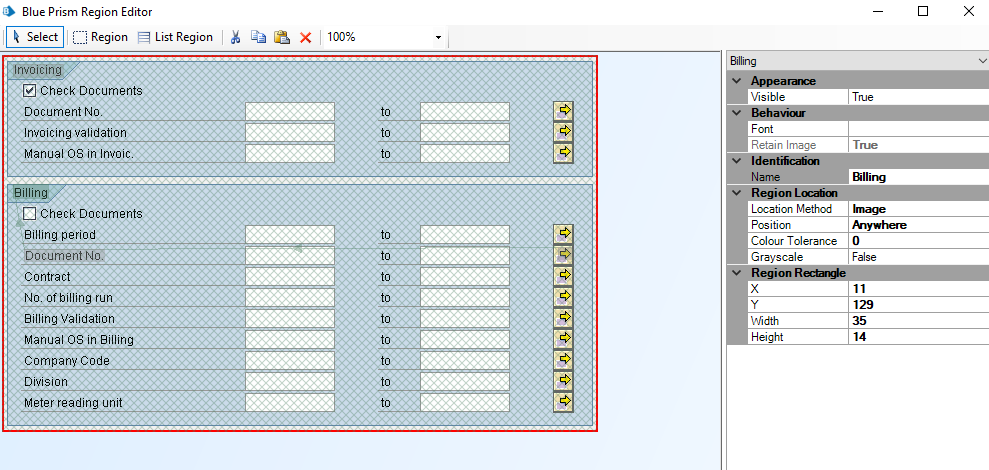

Billing Field:
It is set as anywhere

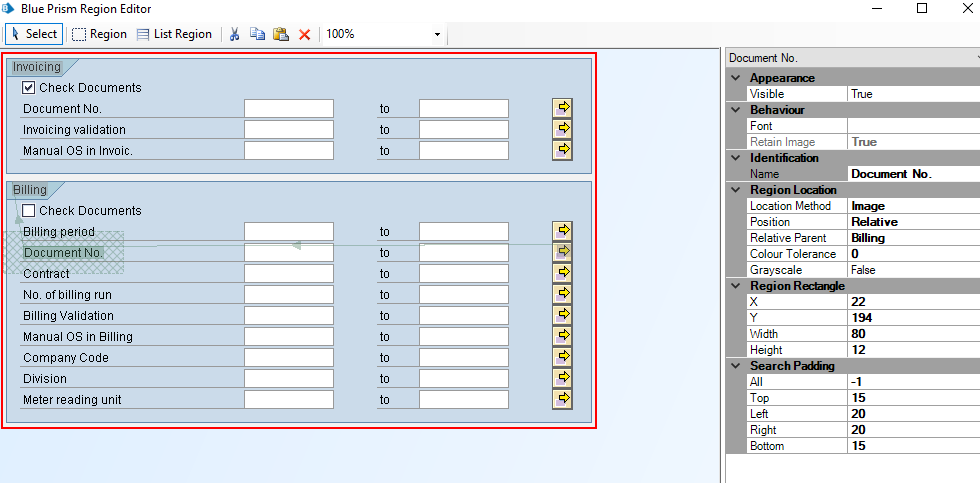

Document No.:
It is relative to the Billing header
Go Button:
It is relative to the Document No. label.

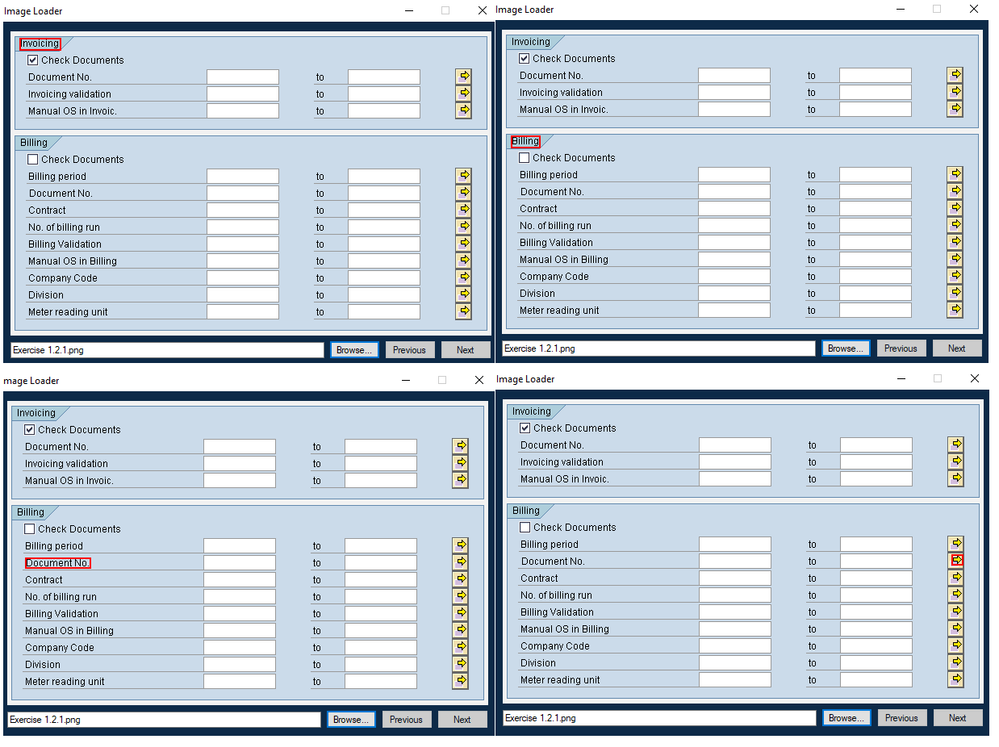

You can see my spy results as below:
Ideally, if your container region window is spied properly all these spying parameters should work.
------------------------------
----------------------------------
Hope it helps you out and if my solution resolves your query, then please mark it as the 'Best Answer' so that the others members in the community having similar problem statement can track the answer easily in future
Regards,
Devneet Mohanty
Intelligent Process Automation Consultant | Sr. Consultant - Automation Developer,
WonderBotz India Pvt. Ltd.
Blue Prism Community MVP | Blue Prism 7x Certified Professional
Website: https://devneet.github.io/
Email: devneetmohanty07@gmail.com
----------------------------------
------------------------------
Ideally, without color tolerance as well you should be able to spy those elements. You can check my properties once and try to replicate the same and verify at your end.
Invoicing Field:
It is set as fixed
Billing Field:
It is set as anywhere
Document No.:
It is relative to the Billing header
Go Button:
It is relative to the Document No. label.
You can see my spy results as below:
Ideally, if your container region window is spied properly all these spying parameters should work.
------------------------------
----------------------------------
Hope it helps you out and if my solution resolves your query, then please mark it as the 'Best Answer' so that the others members in the community having similar problem statement can track the answer easily in future
Regards,
Devneet Mohanty
Intelligent Process Automation Consultant | Sr. Consultant - Automation Developer,
WonderBotz India Pvt. Ltd.
Blue Prism Community MVP | Blue Prism 7x Certified Professional
Website: https://devneet.github.io/
Email: devneetmohanty07@gmail.com
----------------------------------
------------------------------
Hi Sam,
It can happen due to multiple reasons out of which I would recommend to first check the below settings:

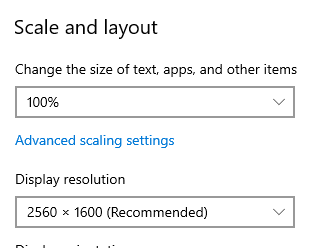

Always makes sure the size of text is set to 100% and you select the recommended resolution as per your machine.

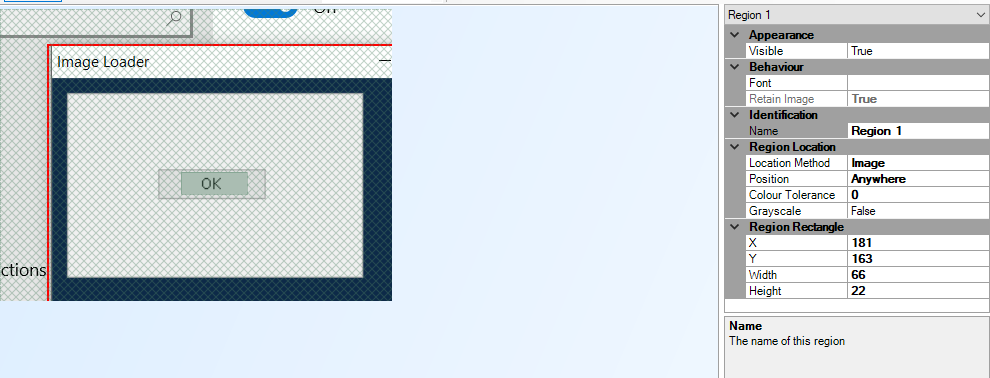

Also, apart from that ensure you are selecting the region settings as below:
You can select the region as per your scenario but the position must be 'Anywhere' or 'Relative' because if you dont use that then it will always expect that region to be located precisely at that fixed coordinate, if there is ever a slight adjustment to the configured fixed coordinate you will get this error.

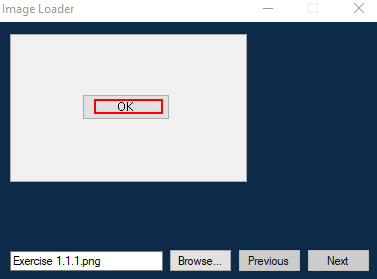

As you can see in my case I am able to highlight the element post these settings:
------------------------------
----------------------------------
Hope it helps you out and if my solution resolves your query, then please mark it as the 'Best Answer' so that the others members in the community having similar problem statement can track the answer easily in future
Regards,
Devneet Mohanty
Intelligent Process Automation Consultant | Sr. Consultant - Automation Developer,
WonderBotz India Pvt. Ltd.
Blue Prism Community MVP | Blue Prism 7x Certified Professional
Website: https://devneet.github.io/
Email: devneetmohanty07@gmail.com
----------------------------------
------------------------------
It can happen due to multiple reasons out of which I would recommend to first check the below settings:
Always makes sure the size of text is set to 100% and you select the recommended resolution as per your machine.
Also, apart from that ensure you are selecting the region settings as below:
You can select the region as per your scenario but the position must be 'Anywhere' or 'Relative' because if you dont use that then it will always expect that region to be located precisely at that fixed coordinate, if there is ever a slight adjustment to the configured fixed coordinate you will get this error.
As you can see in my case I am able to highlight the element post these settings:
------------------------------
----------------------------------
Hope it helps you out and if my solution resolves your query, then please mark it as the 'Best Answer' so that the others members in the community having similar problem statement can track the answer easily in future
Regards,
Devneet Mohanty
Intelligent Process Automation Consultant | Sr. Consultant - Automation Developer,
WonderBotz India Pvt. Ltd.
Blue Prism Community MVP | Blue Prism 7x Certified Professional
Website: https://devneet.github.io/
Email: devneetmohanty07@gmail.com
----------------------------------
------------------------------
Hi @devneetmohanty07 Thank you for replying, but my settings are exactly as same as yours

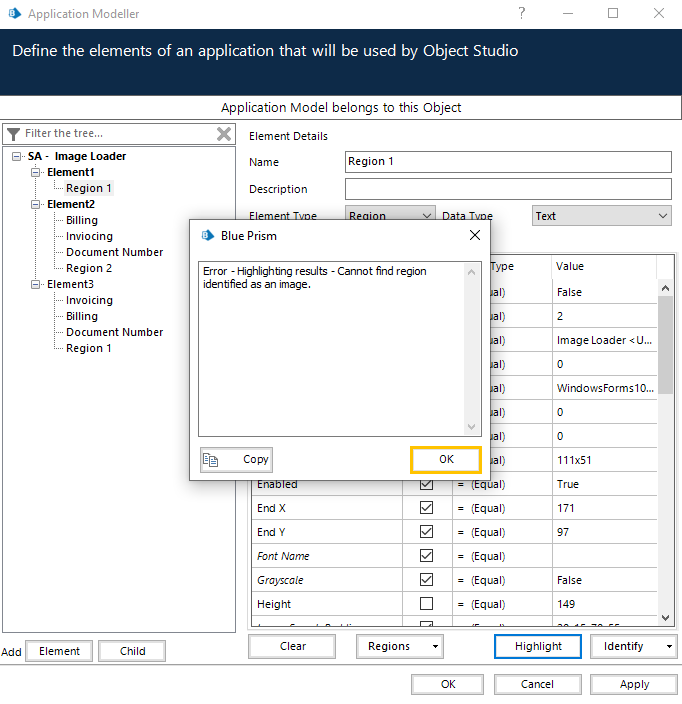

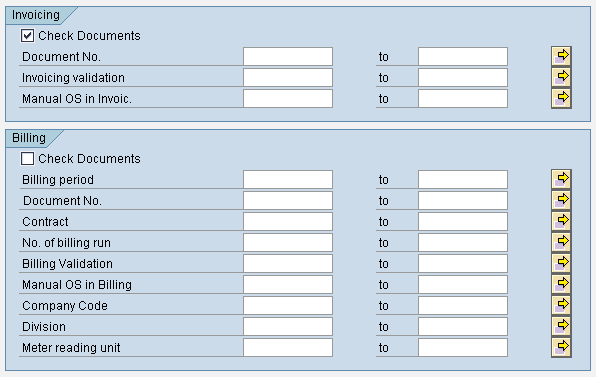

I don't know why but the 'OK' images work well, the problem is with this photo
------------------------------
Sam Lima
------------------------------
I don't know why but the 'OK' images work well, the problem is with this photo
------------------------------
Sam Lima
------------------------------
Hi @SamLima,
Ideally, without color tolerance as well you should be able to spy those elements. You can check my properties once and try to replicate the same and verify at your end.
Invoicing Field:
It is set as fixed
Billing Field:
It is set as anywhere
Document No.:
It is relative to the Billing header
Go Button:
It is relative to the Document No. label.
You can see my spy results as below:
Ideally, if your container region window is spied properly all these spying parameters should work.
------------------------------
----------------------------------
Hope it helps you out and if my solution resolves your query, then please mark it as the 'Best Answer' so that the others members in the community having similar problem statement can track the answer easily in future
Regards,
Devneet Mohanty
Intelligent Process Automation Consultant | Sr. Consultant - Automation Developer,
WonderBotz India Pvt. Ltd.
Blue Prism Community MVP | Blue Prism 7x Certified Professional
Website: https://devneet.github.io/
Email: devneetmohanty07@gmail.com
----------------------------------
------------------------------
Ideally, without color tolerance as well you should be able to spy those elements. You can check my properties once and try to replicate the same and verify at your end.
Invoicing Field:
It is set as fixed
Billing Field:
It is set as anywhere
Document No.:
It is relative to the Billing header
Go Button:
It is relative to the Document No. label.
You can see my spy results as below:
Ideally, if your container region window is spied properly all these spying parameters should work.
------------------------------
----------------------------------
Hope it helps you out and if my solution resolves your query, then please mark it as the 'Best Answer' so that the others members in the community having similar problem statement can track the answer easily in future
Regards,
Devneet Mohanty
Intelligent Process Automation Consultant | Sr. Consultant - Automation Developer,
WonderBotz India Pvt. Ltd.
Blue Prism Community MVP | Blue Prism 7x Certified Professional
Website: https://devneet.github.io/
Email: devneetmohanty07@gmail.com
----------------------------------
------------------------------
