Blue Prism Hub v4.6 Installation issues

EBogdanovs
Level 2

‎05-08-22 02:19 PM

Hello,

I am having some trouble installing BP Hub v4.6 on the App server. DB server is set up, all ports open, test connection is successful. Message broker is configured on the App server and also connects successfully.

The problem is with some PowerShell script (I believe it is called "ColumnEncryption"), that is trying to be executed during installation on the DB server. Maybe someone could help... here is the error on the installation log:

ActionStart: Action 13:50:35: EncryptDatabaseColumns.
Info: SFXCA: Extracting custom action to temporary directory: C:\Windows\Installer\MSI47C1.tmp-\
Info: SFXCA: Binding to CLR version v4.0.30319
Info: Calling custom action BluePrism.Cloud.Base.CustomActions!BluePrism.Cloud.Base.CustomActions.CustomActions.EncryptDatabaseColumns
Info: Starting executing column encryption
Info: System.Management.Automation.CmdletInvocationException: Failed to connect to server .... ---> Microsoft.SqlServer.Management.Common.ConnectionFailureException: Failed to connect to server .... ---> System.Data.SqlClient.SqlException: A network-related or instance-specific error occurred while establishing a connection to SQL Server. The server was not found or was not accessible. Verify that the instance name is correct and that SQL Server is configured to allow remote connections. (provider: TCP Provider, error: 0 - Access is denied.) ---> System.ComponentModel.Win32Exception: Access is denied
--- End of inner exception stack trace ---
at System.Data.SqlClient.SqlInternalConnectionTds..ctor(DbConnectionPoolIdentity identity, SqlConnectionString connectionOptions, SqlCredential credential, Object providerInfo, String newPassword, SecureString newSecurePassword, Boolean redirectedUserInstance, SqlConnectionString userConnectionOptions, SessionData reconnectSessionData, DbConnectionPool pool, String accessToken, Boolean applyTransientFaultHandling, SqlAuthenticationProviderManager sqlAuthProviderManager)
at System.Data.SqlClient.SqlConnectionFactory.CreateConnection(DbConnectionOptions options, DbConnectionPoolKey poolKey, Object poolGroupProviderInfo, DbConnectionPool pool, DbConnection owningConnection, DbConnectionOptions userOptions)
at System.Data.ProviderBase.DbConnectionFactory.CreatePooledConnection(DbConnectionPool pool, DbConnection owningObject, DbConnectionOptions options, DbConnectionPoolKey poolKey, DbConnectionOptions userOptions)
at System.Data.ProviderBase.DbConnectionPool.CreateObject(DbConnection owningObject, DbConnectionOptions userOptions, DbConnectionInternal oldConnection)
at System.Data.ProviderBase.DbConnectionPool.UserCreateRequest(DbConnection owningObject, DbConnectionOptions userOptions, DbConnectionInternal oldConnection)
at System.Data.ProviderBase.DbConnectionPool.TryGetConnection(DbConnection owningObject, UInt32 waitForMultipleObjectsTimeout, Boolean allowCreate, Boolean onlyOneCheckConnection, DbConnectionOptions userOptions, DbConnectionInternal& connection)
at System.Data.ProviderBase.DbConnectionPool.TryGetConnection(DbConnection owningObject, TaskCompletionSource`1 retry, DbConnectionOptions userOptions, DbConnectionInternal& connection)
at System.Data.ProviderBase.DbConnectionFactory.TryGetConnection(DbConnection owningConnection, TaskCompletionSource`1 retry, DbConnectionOptions userOptions, DbConnectionInternal oldConnection, DbConnectionInternal& connection)
at System.Data.ProviderBase.DbConnectionInternal.TryOpenConnectionInternal(DbConnection outerConnection, DbConnectionFactory connectionFactory, TaskCompletionSource`1 retry, DbConnectionOptions userOptions)
at System.Data.ProviderBase.DbConnectionClosed.TryOpenConnection(DbConnection outerConnection, DbConnectionFactory connectionFactory, TaskCompletionSource`1 retry, DbConnectionOptions userOptions)
at System.Data.SqlClient.SqlConnection.TryOpenInner(TaskCompletionSource`1 retry)
at System.Data.SqlClient.SqlConnection.TryOpen(TaskCompletionSource`1 retry)
at System.Data.SqlClient.SqlConnection.Open()
at Microsoft.SqlServer.Management.Common.ConnectionManager.InternalConnect(WindowsIdentity impersonatedIdentity)
at Microsoft.SqlServer.Management.Common.ConnectionManager.Connect()
--- End of inner exception stack trace ---
at Microsoft.SqlServer.Management.Smo.DatabaseCollection.get_Item(String name)
at Microsoft.SqlServer.Management.PowerShell.IaaS.GetSqlDatabaseCommand.<InitializeObject>d__0.MoveNext()
at Microsoft.SqlServer.Management.PowerShell.SmoGetCmdlet`2.ProcessTarget(SmoRecordContext target)
at Microsoft.SqlServer.Management.PowerShell.SqlCmdlet`1.ProcessRecord()
at Microsoft.SqlServer.Management.PowerShell.SmoCmdlet.ProcessRecord()
at System.Management.Automation.Cmdlet.DoProcessRecord()
at System.Management.Automation.CommandProcessor.ProcessRecord()
--- End of inner exception stack trace ---
at System.Management.Automation.Runspaces.PipelineBase.Invoke(IEnumerable input)
at System.Management.Automation.PowerShell.Worker.ConstructPipelineAndDoWork(Runspace rs, Boolean performSyncInvoke)
at System.Management.Automation.PowerShell.Worker.CreateRunspaceIfNeededAndDoWork(Runspace rsToUse, Boolean isSync)
at System.Management.Automation.PowerShell.CoreInvokeHelper(PSDataCollection`1 input, PSDataCollection`1 output, PSInvocationSettings settings)
at System.Management.Automation.PowerShell.CoreInvoke(PSDataCollection`1 input, PSDataCollection`1 output, PSInvocationSettings settings)
at System.Management.Automation.PowerShell.CoreInvoke(IEnumerable input, PSDataCollection`1 output, PSInvocationSettings settings)
at System.Management.Automation.PowerShell.Invoke(IEnumerable input, PSInvocationSettings settings)
at BluePrism.Cloud.Setup.Common.PowerShellScriptRunner.Run(String scriptName, IList`1 parameters)
at BluePrism.Cloud.Base.CustomActions.CustomActions.<>c__DisplayClass8_0.<EncryptDatabaseColumns>b__0() in D:\a\1\s\BPC.Installer\BluePrism.Cloud.Base.CustomActions\CustomActions.cs:line 207
at WixSharp.Extensions.HandleErrors(Session session, Action action)
Info: CustomAction EncryptDatabaseColumns returned actual error code 1603 (note this may not be 100% accurate if translation happened inside sandbox)
Info: Action ended 13:51:01: InstallFinalize. Return value 3.

It seems that there are some access issues, but I can't figure out what exactly, since I can connect to the DB server without any problem.

Will appreciate any comments on this.

0 Likes
2 REPLIES 2

chris.mcgowan
Staff
Staff

‎08-08-22 02:20 PM

Hi Eduards,

This is indeed the installation configuring the Always Encrypted feature of SQL Server for use by the application. This error is most commonly seen when the transact SQL run against the SQL Server does not complete within the allocated timeout period. I have seen this several times when using Azure SQL Database and Azure SQL Managed Instance. Could you please provide a few details of the deployment of SQL Server that has been implemented? Is this on premises, in the cloud, SQL Server version, edition, CPU, RAM.

Regards

Chris McGowan

0 Likes

EBogdanovs
Level 2

‎09-08-22 01:33 PM

Hi @chris.mcgowan (sorry, idk how to mention shortly), thanks for your interest.

Actually, I have found out, why this issue occurred. It seems that our security cloud solution called Carbon Black (CB) Defense is blocking the connection between App and DB server.

However, I tried installing previous version of BP HUB v4.5, which also is getting blocked by the CB, but in a different manner. Maybe you had such experience.
I have found a event in the Application logs, which states the following:

Information: The script "C:\windows\installer\msi45c.tmp" attempted to load the library "bcrypt.dll" by calling the function "LoadLibraryExW". The operation was blocked and the application terminated by Carbon Black Cloud.

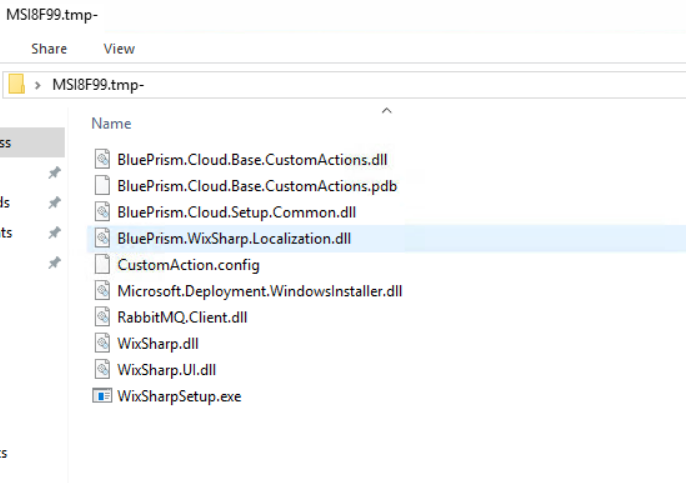

There are some custom actions for installation purposes, which as I understand, try to encrypt some configuration files for HUB DB tables. The action is called 'SetEncryption' under the 'BluePrism.Cloud.Base.CustomActions.dll', that gets blocked every time it tries to run this specific action/function.


The security support team is asking to provide additional details on what is the purpose of these files, I guess that there is no way, I can get this information, but it is just interesting if anyone had experienced something similar...

​UPD:

I have also noticed, that when this encryption is failing I get the following error:

Application: w3wp.exe
CoreCLR Version: 4.700.22.26002
.NET Core Version: 3.1.26
Description: The process was terminated due to an unhandled exception.
Exception Info: System.Security.Cryptography.CryptographicException: An error occurred during a cryptographic operation.
---> System.FormatException: The input is not a valid Base-64 string as it contains a non-base 64 character, more than two padding characters, or an illegal character among the padding characters.
at System.Convert.FromBase64_ComputeResultLength(Char* inputPtr, Int32 inputLength)
at System.Convert.FromBase64CharPtr(Char* inputPtr, Int32 inputLength)
at System.Convert.FromBase64CharArray(Char[] inArray, Int32 offset, Int32 length)
at Microsoft.Extensions.Internal.WebEncoders.Base64UrlDecode(String input, Int32 offset, Char[] buffer, Int32 bufferOffset, Int32 count)
at Microsoft.Extensions.Internal.WebEncoders.Base64UrlDecode(String input, Int32 offset, Int32 count)
at Microsoft.Extensions.Internal.WebEncoders.Base64UrlDecode(String input)
at Microsoft.AspNetCore.DataProtection.DataProtectionCommonExtensions.Unprotect(IDataProtector protector, String protectedData)
--- End of inner exception stack trace ---
at Microsoft.AspNetCore.DataProtection.DataProtectionCommonExtensions.Unprotect(IDataProtector protector, String protectedData)
at THT.SettingsProtection.Protections.ProtectedConfiguration.GetProtectedValue(String value)
at THT.SettingsProtection.Protections.ProtectedConfigurationSection.get_Value()
at Microsoft.Extensions.Configuration.ConfigurationBinder.BindInstance(Type type, Object instance, IConfiguration config, BinderOptions options)
at Microsoft.Extensions.Configuration.ConfigurationBinder.BindProperty(PropertyInfo property, Object instance, IConfiguration config, BinderOptions options)
at Microsoft.Extensions.Configuration.ConfigurationBinder.BindNonScalar(IConfiguration configuration, Object instance, BinderOptions options)
at Microsoft.Extensions.Configuration.ConfigurationBinder.BindInstance(Type type, Object instance, IConfiguration config, BinderOptions options)
at Microsoft.Extensions.Configuration.ConfigurationBinder.Bind(IConfiguration configuration, Object instance, Action`1 configureOptions)
at Microsoft.Extensions.Options.NamedConfigureFromConfigurationOptions`1.<>c__DisplayClass1_0.<.ctor>b__0(TOptions options)
at Microsoft.Extensions.Options.ConfigureNamedOptions`1.Configure(String name, TOptions options)
at Microsoft.Extensions.Options.OptionsFactory`1.Create(String name)
at Microsoft.Extensions.Options.OptionsManager`1.<>c__DisplayClass5_0.<Get>b__0()
at System.Lazy`1.ViaFactory(LazyThreadSafetyMode mode)
at System.Lazy`1.ExecutionAndPublication(LazyHelper executionAndPublication, Boolean useDefaultConstructor)
at System.Lazy`1.CreateValue()
at System.Lazy`1.get_Value()
at Microsoft.Extensions.Options.OptionsCache`1.GetOrAdd(String name, Func`1 createOptions)
at Microsoft.Extensions.Options.OptionsManager`1.Get(String name)
at Microsoft.Extensions.Options.OptionsManager`1.get_Value()
at BPC.Extensions.DependencyInjection.OptionsServiceProviderExtensions.GetOptions[TOptions](IServiceProvider provider)
at BPC.FileStorageApi.Extensions.ServiceCollectionExtensions.<>c.<AddFileStorage>b__0_0(DatabaseFileStorageOptions option, IServiceProvider provider)
at Microsoft.Extensions.Options.ConfigureNamedOptions`2.Configure(String name, TOptions options)
at Microsoft.Extensions.Options.OptionsFactory`1.Create(String name)
at Microsoft.Extensions.Options.OptionsManager`1.<>c__DisplayClass5_0.<Get>b__0()
at System.Lazy`1.ViaFactory(LazyThreadSafetyMode mode)
at System.Lazy`1.ExecutionAndPublication(LazyHelper executionAndPublication, Boolean useDefaultConstructor)
at System.Lazy`1.CreateValue()
at System.Lazy`1.get_Value()
at Microsoft.Extensions.Options.OptionsCache`1.GetOrAdd(String name, Func`1 createOptions)
at Microsoft.Extensions.Options.OptionsManager`1.Get(String name)
at Microsoft.Extensions.Options.OptionsManager`1.get_Value()
at BPC.FileStorage.DataAccess.DatabaseFileServiceContextFactory..ctor(IOptions`1 options, ILogger`1 logger)
at System.RuntimeMethodHandle.InvokeMethod(Object target, Object[] arguments, Signature sig, Boolean constructor, Boolean wrapExceptions)
at System.Reflection.RuntimeConstructorInfo.Invoke(BindingFlags invokeAttr, Binder binder, Object[] parameters, CultureInfo culture)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteRuntimeResolver.VisitConstructor(ConstructorCallSite constructorCallSite, RuntimeResolverContext context)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteVisitor`2.VisitCallSiteMain(ServiceCallSite callSite, TArgument argument)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteRuntimeResolver.VisitCache(ServiceCallSite callSite, RuntimeResolverContext context, ServiceProviderEngineScope serviceProviderEngine, RuntimeResolverLock lockType)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteRuntimeResolver.VisitRootCache(ServiceCallSite singletonCallSite, RuntimeResolverContext context)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteVisitor`2.VisitCallSite(ServiceCallSite callSite, TArgument argument)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteRuntimeResolver.Resolve(ServiceCallSite callSite, ServiceProviderEngineScope scope)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.DynamicServiceProviderEngine.<>c__DisplayClass1_0.<RealizeService>b__0(ServiceProviderEngineScope scope)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.ServiceProviderEngine.GetService(Type serviceType, ServiceProviderEngineScope serviceProviderEngineScope)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.ServiceProviderEngineScope.GetService(Type serviceType)
at Microsoft.Extensions.DependencyInjection.ServiceProviderServiceExtensions.GetService[T](IServiceProvider provider)
at BPC.FileStorage.Extensions.ServiceCollectionExtension.<>c.<AddFileStorage>b__1_0(IServiceProvider provider)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteRuntimeResolver.VisitFactory(FactoryCallSite factoryCallSite, RuntimeResolverContext context)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteVisitor`2.VisitCallSiteMain(ServiceCallSite callSite, TArgument argument)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteRuntimeResolver.VisitCache(ServiceCallSite callSite, RuntimeResolverContext context, ServiceProviderEngineScope serviceProviderEngine, RuntimeResolverLock lockType)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteRuntimeResolver.VisitRootCache(ServiceCallSite singletonCallSite, RuntimeResolverContext context)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteVisitor`2.VisitCallSite(ServiceCallSite callSite, TArgument argument)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteRuntimeResolver.Resolve(ServiceCallSite callSite, ServiceProviderEngineScope scope)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.DynamicServiceProviderEngine.<>c__DisplayClass1_0.<RealizeService>b__0(ServiceProviderEngineScope scope)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.ServiceProviderEngine.GetService(Type serviceType, ServiceProviderEngineScope serviceProviderEngineScope)
at Microsoft.Extensions.DependencyInjection.ServiceLookup.ServiceProviderEngineScope.GetService(Type serviceType)
at Microsoft.Extensions.DependencyInjection.ServiceProviderServiceExtensions.GetService[T](IServiceProvider provider)
at BPC.FileStorageApi.Startup.UseStaticFiles(IApplicationBuilder app, String basePath)
at BPC.FileStorageApi.Startup.Configure(IApplicationBuilder app, IWebHostEnvironment env)
at System.RuntimeMethodHandle.InvokeMethod(Object target, Object[] arguments, Signature sig, Boolean constructor, Boolean wrapExceptions)
at System.Reflection.RuntimeMethodInfo.Invoke(Object obj, BindingFlags invokeAttr, Binder binder, Object[] parameters, CultureInfo culture)
at Microsoft.AspNetCore.Hosting.ConfigureBuilder.Invoke(Object instance, IApplicationBuilder builder)
at Microsoft.AspNetCore.Hosting.ConfigureBuilder.<>c__DisplayClass4_0.<Build>b__0(IApplicationBuilder builder)
at Microsoft.AspNetCore.Hosting.GenericWebHostBuilder.<>c__DisplayClass13_0.<UseStartup>b__2(IApplicationBuilder app)
at Microsoft.AspNetCore.Mvc.Filters.MiddlewareFilterBuilderStartupFilter.<>c__DisplayClass0_0.<Configure>g__MiddlewareFilterBuilder|0(IApplicationBuilder builder)
at Microsoft.AspNetCore.Server.IIS.Core.IISServerSetupFilter.<>c__DisplayClass2_0.<Configure>b__0(IApplicationBuilder app)
at Microsoft.AspNetCore.HostFilteringStartupFilter.<>c__DisplayClass0_0.<Configure>b__0(IApplicationBuilder app)
at Microsoft.AspNetCore.Hosting.GenericWebHostService.StartAsync(CancellationToken cancellationToken)
at Microsoft.Extensions.Hosting.Internal.Host.StartAsync(CancellationToken cancellationToken)
at Microsoft.Extensions.Hosting.HostingAbstractionsHostExtensions.RunAsync(IHost host, CancellationToken token)
at Microsoft.Extensions.Hosting.HostingAbstractionsHostExtensions.RunAsync(IHost host, CancellationToken token)
at Microsoft.Extensions.Hosting.HostingAbstractionsHostExtensions.Run(IHost host)
at BPC.FileStorageApi.Program.Main(String[] args)

​
