Name of DX VBO to capture screenshot

Hi team,

I recall we had Utility Screenshot earlier.

I'm unable to find that or any other utility to take screenshots. Please advise me on the name of DX VBO to capture the screenshots.



------------------------------
If I was of assistance, please vote for it to be the "Best Answer".

LinkedIn - https://www.linkedin.com/in/tejaskumardarji/

Thanks & Regards,
Tejaskumar Darji
Sr. Consultant-Technical Lead
------------------------------
5 REPLIES 5

ewilson
Staff
Staff

Hi @Tejaskumar_Darji

There is a screenshot VBO on the DX, but for some reason it's been made private. Let me check with the developer to see if I can find out why. If it's a mistake we'll get it turned back on for public view.

Cheers,



------------------------------
Eric Wilson
Director, Integrations and Enablement
Blue Prism Digital Exchange
------------------------------

Okay thanks for quick update Eric Wilson



------------------------------
If I was of assistance, please vote for it to be the "Best Answer".

LinkedIn - https://www.linkedin.com/in/tejaskumardarji/

Thanks & Regards,
Tejaskumar Darji
Sr. Consultant-Technical Lead
------------------------------

Just checking in to see if there’s any update on this. We’re still seeing new users facing challenges with the basic screenshot capture functionality. I’m curious why this hasn’t been integrated natively into one of the core VBOs yet, considering it is a super basic requirement.

Hi Tejas - I have not used it myself but did you have the chance to look at this one on DX (Screen Capture Tool)

BluePrism Digital Exchange

Regards,

Mukesh Kumar

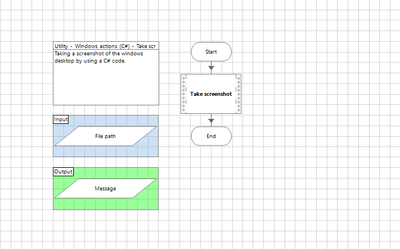

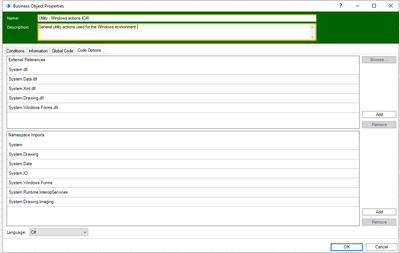

Also - If its easy to build a custom VBO - Windows actions (C#) - Take Screenshot action(General utility actions used for the Windows environment).



Inputs = file_path
Outputs = message

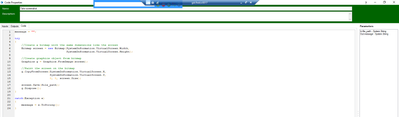

Main Code:
message = "";

try
{
//Create a bitmap with the same dimensions like the screen
Bitmap screen = new Bitmap(SystemInformation.VirtualScreen.Width,
   SystemInformation.VirtualScreen.Height);

//Create graphics object from bitmap
Graphics g = Graphics.FromImage(screen);

//Paint the screen on the bitmap
g.CopyFromScreen(SystemInformation.VirtualScreen.X,
SystemInformation.VirtualScreen.Y,
0, 0, screen.Size);

screen.Save(file_path);
g.Dispose();
}

catch(Exception e)
{
message = e.ToString();
}





Regards,

Mukesh Kumar
