SDD output in BP

[BrandonMiller]

Hello everyone,

In Uipath you have a option when working on a project and you have commented it correctly that you can output a SDD of the project. Does Blue Prism have that option and if so could someone point me in the right direction on documentation for it. Thanks so much

------------------------------
Brandon Miller
------------------------------

[PabloSarabia]

Hi @Brandon Miller
​
I think is not the same as UIPath, but here you have two helpfull tools for your document:

- Print the entry pages of the Process: By opening the Process or Business Object go to the top menu, File >> Print >> and then the option that you prefer.

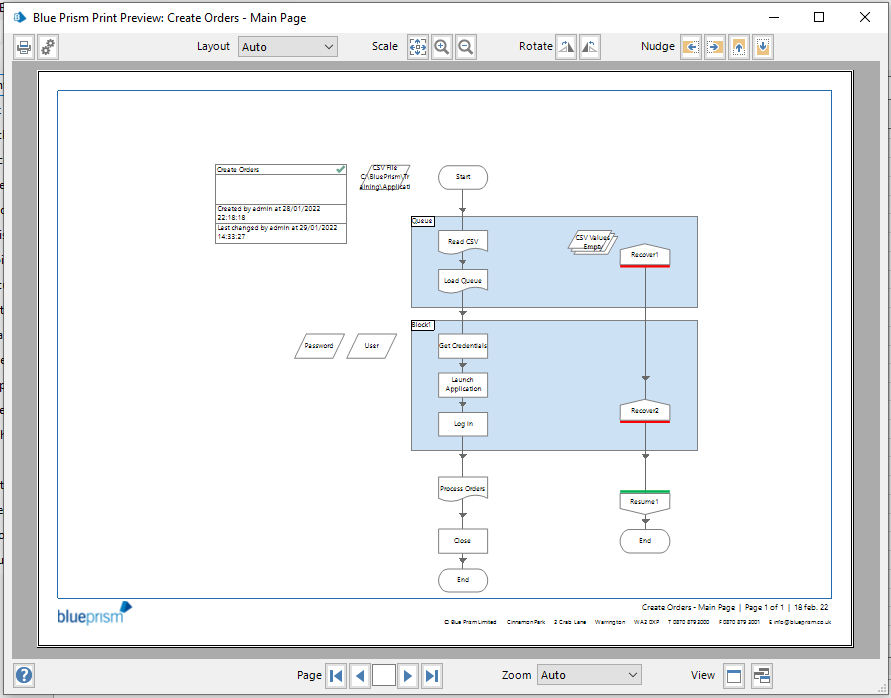

The preview of the export looks like this:

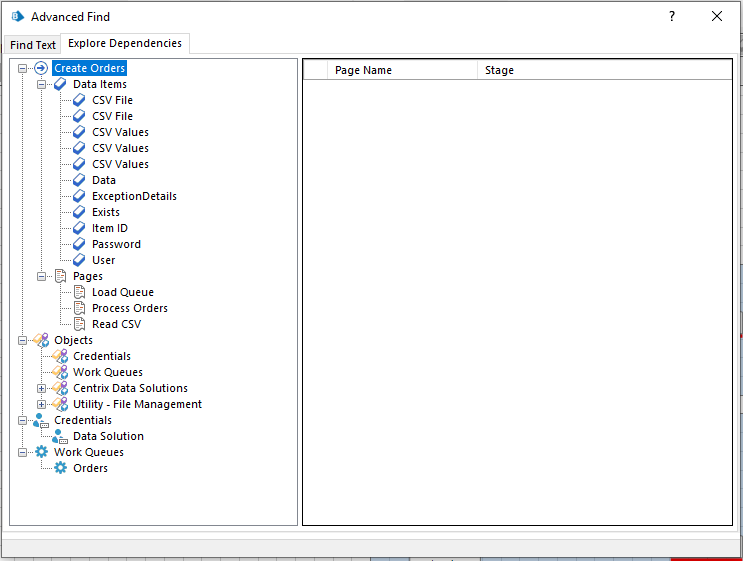

Also, you can know the all the dependences in your diagram. With the Process open, go to the top menu "Tools", and the choose "Dependencies". This gives you an entry tree of all pages and object that you use in the solution. Looks like that:



Hope this helps you with SDD.



Bye 🙂


------------------------------
Pablo Sarabia
